FZW32 Outdoor High-Voltage Vacuum Load Switch

As a professional manufacturer, we sincerely recommend Ceho FZW32 Outdoor High-Voltage Vacuum Load Switch.This load switch has three main components: isolating blade, vacuum interrupter and operating mechanism.Among these components, the core of its function is the application of vacuum interrupter principle, in which vacuum environment can quickly and effectively extinguish arc.This switch is designed to last a long time without frequent replacement and maintenance.And its compact size saves space and is suitable for a variety of installation scenarios.It has no explosion risk and zero pollution, making it an environmentally safe choice for power distribution applications.

Versatile Application in Key Sectors

The FZW32 Outdoor High-Voltage Vacuum Load Switch can be used in conjunction with the appropriate vacuum load switch for power distribution systems in a wide range of industries.In the power industry, it enables efficient power transmission and distribution in the voltage range of 12kV to 45.5 kV, which is important for the stability of the grid.In the metallurgical industry, it can meet the high power requirements and frequent switching requirements of heavy machinery. The mining industry, in particular, requires safe and stable performance in harsh and potentially explosive environments, and this product meets this.In the chemical industry, it controls and protects circuits in complex chemical processes and corrosive environments.Regardless of the industry, we recommend this product for use in locations where frequent operations are required, after all, load balancing and circuit isolation are common.

Environmental Conditions

In addition to discussing applicable industries, our FZW32 Outdoor High-Voltage Vacuum Load Switch can also be used in a variety of environments.It can work stably in areas up to 2000 meters above sea level, and there is no need to worry about installation in mountainous areas or high-altitude industrial sites. The ambient temperature range is-30℃ to +40℃, the daily temperature difference does not exceed 32K, and it has good adaptability to cold and hot weather.Moreover, it can withstand wind pressures of up to 700Pa, equivalent to wind speeds of 34m/s. If you need to use it in windy areas, you don't have to worry too much. According to the relevant standards (GB5585), this product can withstand the air pollution level of IV, equivalent to dealing with moderate pollution environment. In addition, it can withstand seismic intensities of up to 8 degrees and insulating ice thicknesses of up to 10 mm.

Product Main Structure Diagram

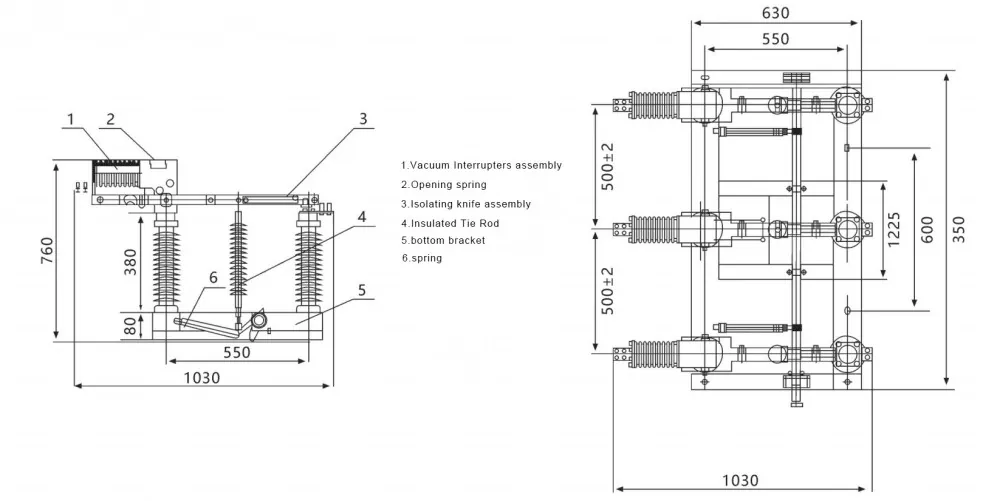

12kV

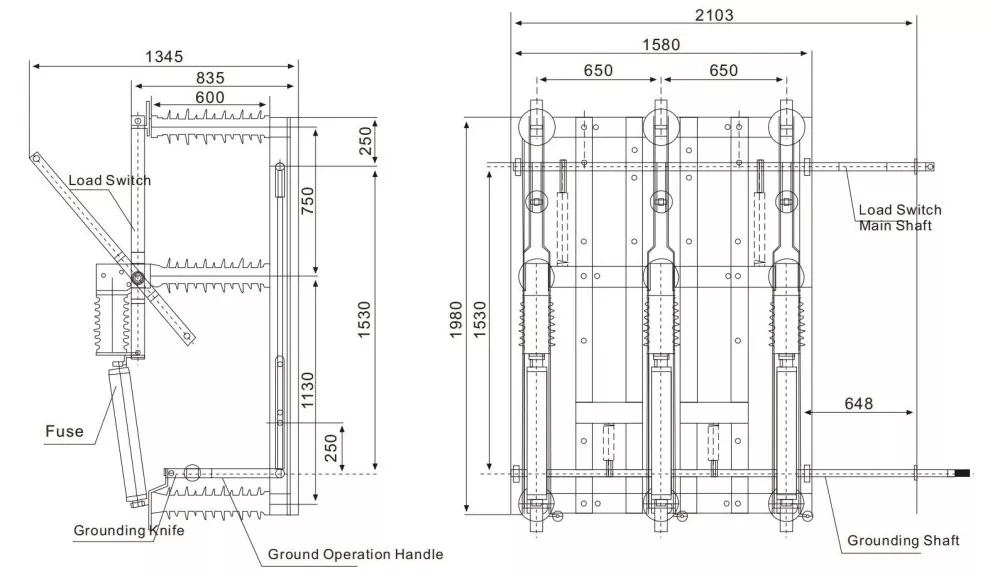

24kV

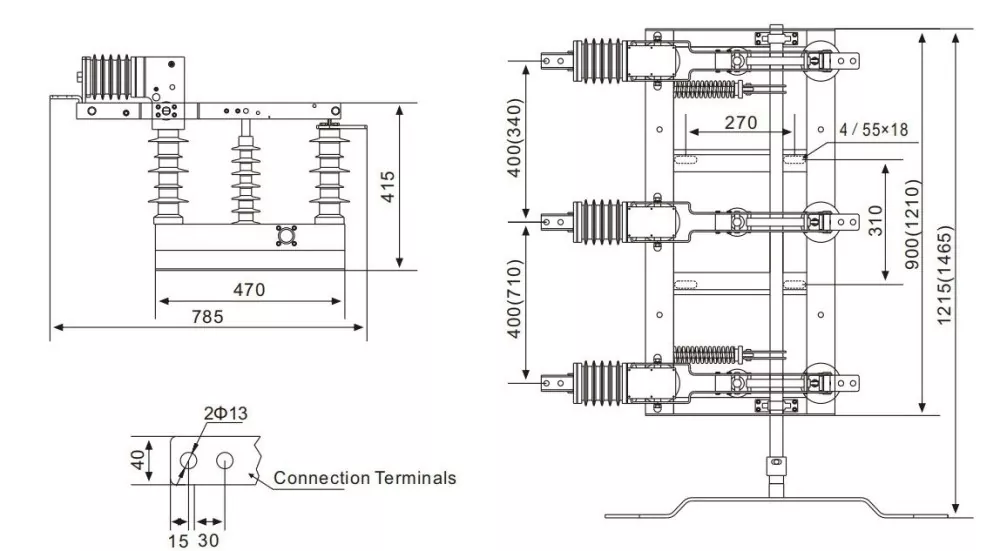

40.5kV

Technical Specification
