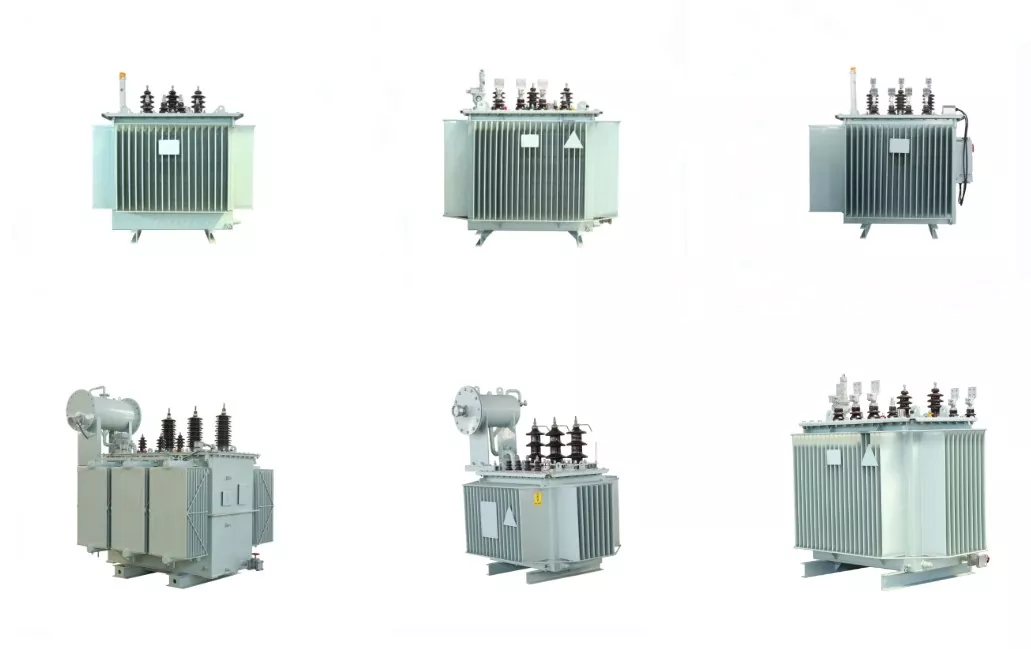

Oil Immersed Distribution Power Transformer

The core of Oil Immersed Distribution Power Transformer is constructed by laminating imported high-quality cold-rolled silicon steel sheets, significantly reducing no-load and no-load current. The core is bound to ensure compactness and minimize noise. High and low-voltage windings are made of oxygen-free copper. Low-voltage windings for 500KVA and below adopt a double-layer cylindrical structure, while those for 630KVA and above use a double-helix or quad-helix structure or copper foil winding. High-voltage windings employ a multi-layer cylindrical structure.

The transformer adopts the Dyn11 connection group to minimize harmonic effects on the power grid and enhance power supply quality. Its fully sealed construction extends service life, eliminates the need for core removal, and requires no maintenance. After standard transportation, this series transformer requires no core inspection. Relevant components can be installed directly, followed by acceptance testing. Upon passing, it is ready for operation.

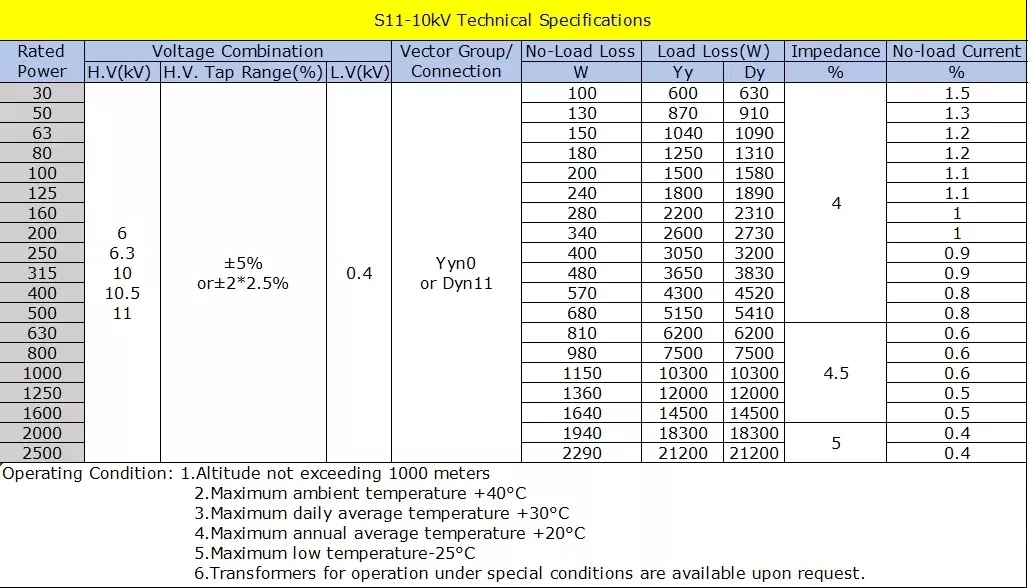

Specification

Standards & certifications

Design & test: IEC 60076-1…11, GB 1094, IEEE C57.12.00;

Loss evaluation: IEC 60076-20;

Safety: IEC 61936, DL/T 572;

Environment: ISO 14001, CE, EAC, UkrSEPRO for Ukraine export

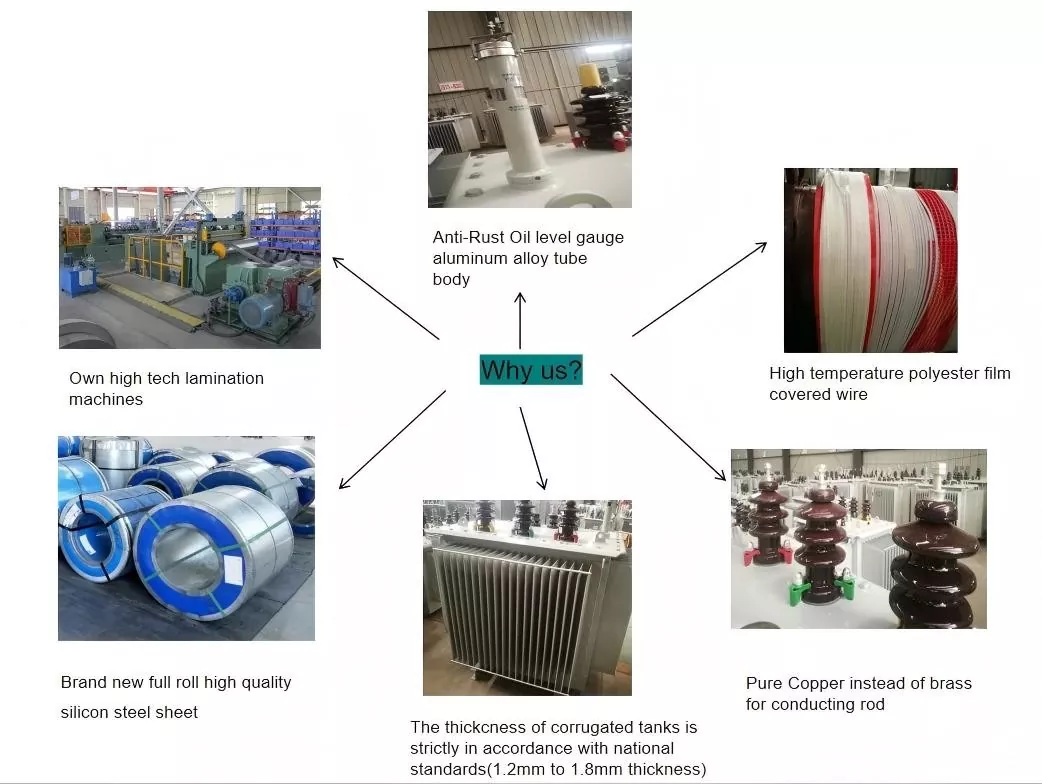

Why choose us?

- Our Oil Immersed Distribution Power Transformer is highly efficient and low loss, reducing energy consumption and operating costs.

- The transformer body is a new type of insulation structure, short-circuit withstand capacity than the original has been improved.

- Iron core is high quality cold-rolled silicon steel sheet, high permeability.It consists of high/low voltage windings, which are oxygen-free copper wires and adopt a multi-layer cylindrical structure.

- All fasteners have been specially treated to prevent loosening.

- The corrugated structure of the oil tank, the tank cover and the edge of the box have two ways of full welding or bolt connection, which can prolong the service life of transformer oil and insulation materials.

Operating Environment Conditions

1. Installation altitude shall not exceed 1000m above sea level (under normal conditions); special environments require separate specifications.

2. Ambient temperature shall not exceed 40°C.

3. Minimum outdoor temperature: -25°C.

Transformers capable of operating under special conditions may be provided upon customer request.
