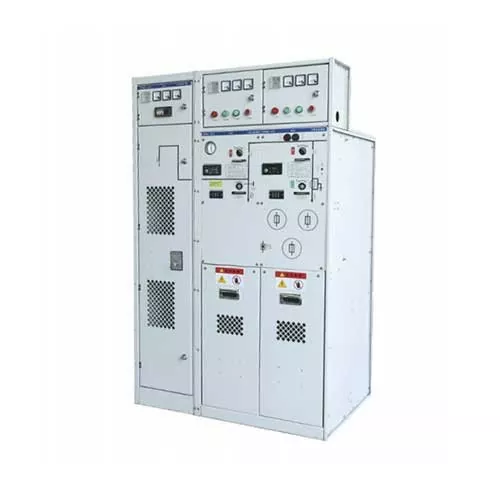

SRM-12 Fully Insulated Gas-filled Ring Main Unit

The SRM-12 Fully Insulated Gas-filled Ring Main Unit is a state-of-the-art medium voltage switchgear designed for use in 12kV electrical distribution systems. This product provides reliable and efficient protection, control, and distribution of electrical power. It is ideal for applications in urban and industrial power grids, ensuring the safety and stability of the electrical network.

Structural Features

The SRM-12 Fully Insulated Gas-filled Ring Main Unit features a fully insulated design, enhancing safety and reliability and preventing accidental contact with live parts. The closed structure provides protection against dust, moisture and other environmental pollutants, ensuring long-term durability and performance. The compact modular design makes it easy to install and integrate into various switchgear configurations. It uses SF6 gas, which features excellent insulation performance and reliable arc-extinguishing performance. Built of sturdy materials, it can withstand harsh environmental conditions and mechanical stress.

Installation Method

1. Site preparation: The location to be installed needs to be kept clean, dry and free of dust and other contaminants.

2. Installation: We provide mounting brackets and accessories with which to mount the RMU securely on a stable and sturdy surface.

3. Electrical connection: Connect the incoming and outgoing cables to the specified terminals, which need to be firmly connected, and this process needs to make correct electrical connections according to the attached wiring diagram.

4. Grounding: Make sure the RMU is properly grounded, otherwise there may be a risk of electric shock.Connect the ground terminal to the ground bus of the switchboard or switchgear.

5. Test: After installation, insulation resistance and continuity test shall be carried out to test whether installation is correct and function is normal.We recommend that you perform open and close operations several times to verify operation.

Technical Specifications

Environmental Conditions

1. Ambient temperature: not higher than +40 ºC, not less than -15 ºC (at -30  ºC to allow storage and transportation).

2. Altitude: not exceed 1000m.

3. Earthquake intensity: not more than 8 degree.

4. Wind pressure:≤700pa

5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration
