GCK Low Voltage Withdrawable Switchgear

Ceho can be your supplier of GCK Low Voltage Withdrawable Switchgear, enjoy our high quality products and competitive prices. GCK control panel adopts bolt connection. The complete control panel has several components such as door, wiring board, baffle plate, supporting frame, drawer and bus bar. The basic framework is a combination of FA 28 or KB (Type C). All structural parts are connected by tapping screws.The door, panel, baffle, support frame and drawer are assembled into a complete control panel as required. The size of the mounting holes of the panel body and the parts varies within E= 25mm, which is flexible and convenient to install. Drawer unit height is divided into 1/2 unit, 200mm, 300mm, 400mm, 500mm and 600mm series.The drawer height is determined by the loop current, and the virtual installation height is 1800 mm.

The pull-out function unit of GCK control panel adopts special push-pull mechanism with light structure and good interchangeability.It indicates the mechanical locking status of the operating position, test position and isolation position. Operating handle can be equipped with padlock. The frame and internal metal parts are galvanized to ensure reliable grounding.

Operating Conditions

1. Ambient temperature: -5 ~+40 ;

2. Relative humidity: daily average  95%, monthly average  90%;

3. Indoor type, altitude  2000m;

4. Earthquake intensity  8 degree;

5. Occasions without flammable and explosive matter, without corrosive chemical and frequent severe vibration.

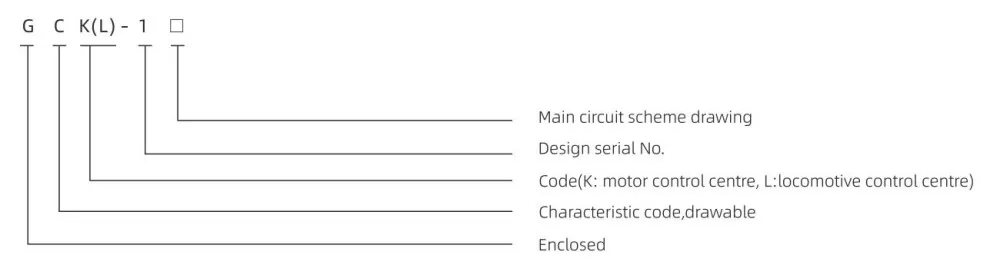

Model

Installation Dimension
