GCS Low Voltage Withdrawable Switchgear

GCS Low Voltage Withdrawable Switchgear is manufactured by Ceho factory, which can be customized according to different design requirements. It meets national standards, has high technical performance indicators, and adapts to the development needs of the power market. It is also our product that can stand out in the competition of low voltage withdrawable switchgear products.

1. Rated value: rated voltage 400V, 690V, rated current up to 4000A.

2. Application: Suitable for places with high degree of automation and need to communicate with computers, such as large power stations and petrochemical systems.It can be used as low voltage power distribution equipment for power distribution and motor control, as well as reactive power compensation equipment in power systems.

3. Protection class: IP30, IP40

4. IEC60439-1

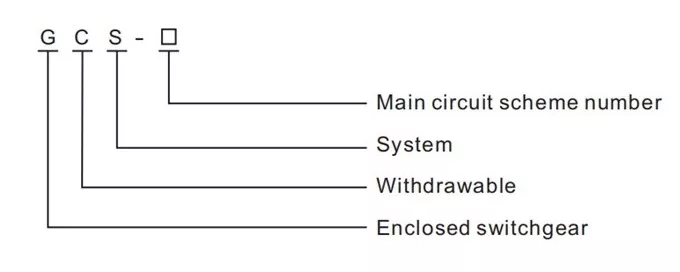

Model Meaning

Working Conditions

1. Ambient air temperature: -15℃~+40℃

Daily average temperature: ≤35℃

When the actual temperature exceed the range, it should be used by reducing the capacity accordingly.

2. Altitude: ≤2000m

3. Relative humidity: ≤50%, when temperature is +40℃

When temperature is low, larger relative humidity is allowed. when it is +20℃,relative humidity can be 90%. Since the temperature change will make out condensation.

4. Installation inclination: ≤5%

5. Applicable in the places without corrosive and flammable gas.

Note: Customized products are available

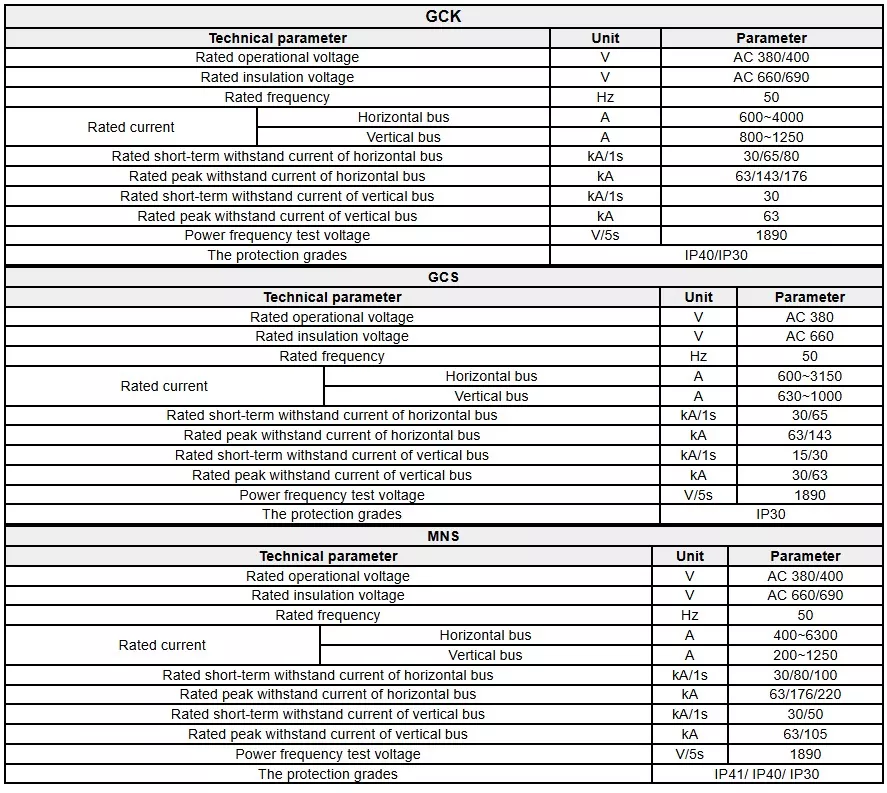

Technical Parameters
