JDZ Single-Phase Epoxy Resin Cast Voltage Transformer

Epoxy resin casting technology has revolutionized the design of JDZ single-phase epoxy resin cast voltage transformers, giving them superior insulation, mechanical strength, and environmental resistance. It is particularly recognized for its reliability and accuracy in single-phase applications. Its compact, maintenance-free design makes it suitable for indoor and outdoor installations across various industries.

From power plants to industrial facilities and commercial buildings, our voltage transformers are indispensable tools for energy management and system protection. Their ability to maintain accuracy under diverse operating conditions makes them the preferred choice for medium-voltage system engineers and technicians.

Specification

What is a JDZ Single-Phase Epoxy Resin Cast Voltage Transformer?

A JDZ Single-Phase Epoxy Resin Cast Voltage Transformer is a precision instrument transformer specifically engineered for voltage measurement and protection in electrical power systems. This device operates on the principle of electromagnetic induction to transform high primary voltages to standardized low secondary voltages, typically 110V or 100/√3V, suitable for connection to measuring instruments, protective relays, and control equipment.

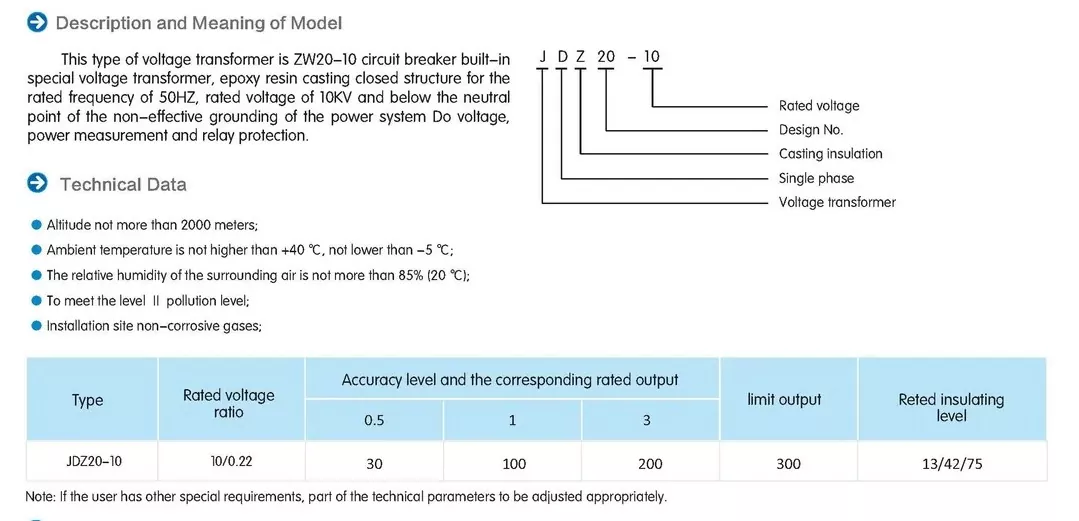

The transformer's core construction features high-grade silicon steel laminations wound with precision copper windings, all encapsulated in specially formulated epoxy resin. This casting process creates a monolithic structure that provides exceptional dielectric strength while eliminating air pockets that could lead to partial discharges. The JDZ designation refers to its single-phase configuration, with "J" indicating voltage transformer, "D" representing single-phase, and "Z" signifying epoxy resin casting technology.

Key operational characteristics include a defined accuracy class (typically 0.2, 0.5, or 1.0), specified thermal performance ratings, and compliance with international standards such as IEC 60044-2. The device maintains linear transformation ratios across its designed voltage range, ensuring measurement precision even during system fluctuations. Its design incorporates barriers and creepage distance optimization to prevent surface tracking, particularly important in humid or polluted environments.

JDZ Single-Phase Epoxy Resin Cast Voltage Transformer encapsulation serves multiple critical functions: it provides mechanical protection to the windings, creates a moisture-proof barrier, and distributes electrical stresses evenly throughout the structure. This results in a transformer with superior short-circuit withstand capability and resistance to environmental factors compared to conventional oil-filled or dry-type designs.

Key Features

The JDZ Single-Phase Epoxy Resin Cast Voltage Transformer incorporates several distinctive features that set it apart from conventional voltage transformers. Its design focuses on reliability, accuracy, and long-term performance in demanding electrical environments.

The epoxy resin encapsulation system represents the transformer's most significant technological advancement. This specially formulated compound provides exceptional dielectric properties with a typical dielectric strength exceeding 20kV/mm. The casting process ensures complete immersion of all active components, creating a void-free insulation system that prevents partial discharge activity even under continuous operation at rated voltage. The resin formulation includes UV stabilizers for outdoor applications, maintaining insulation integrity despite prolonged sunlight exposure.

Mechanical robustness is another hallmark of the JDZ design. The epoxy resin forms a rigid, shock-resistant housing that protects the internal components from vibration, mechanical stress, and accidental impact. This construction eliminates the need for external protective enclosures in many applications, reducing overall installation footprint. The material's inherent flame-retardant properties meet stringent fire safety requirements without requiring additional fireproof coatings.

Electrical performance features include low magnetic losses due to high-quality grain-oriented silicon steel cores and precision-wound copper windings. The transformer demonstrates excellent frequency response characteristics, maintaining accuracy across a wide frequency range from 15Hz to 100Hz. Its thermal performance ensures stable operation across temperature ranges from -40°C to +70°C, with temperature coefficients carefully compensated in the design to maintain measurement accuracy.

The transformer incorporates advanced field grading techniques in its terminal design, using embedded electrodes and stress-relief contours to manage electric field distribution. This prevents corona discharge at high voltage points and enhances long-term reliability. All live parts remain completely encapsulated, eliminating exposed high-voltage connections and significantly improving operational safety.

Applications

The JDZ Single-Phase Epoxy Resin Cast Voltage Transformer finds extensive application across multiple sectors of the electrical power industry due to its versatile performance characteristics and robust construction.

In power generation facilities, these transformers serve critical roles in generator output measurement, grid synchronization, and protection systems. They provide accurate voltage signals for turbine control systems, excitation equipment, and power factor correction devices. Their compact design allows installation in space-constrained switchgear compartments near generators or step-up transformers.

Transmission and distribution networks utilize JDZ transformers for revenue metering at substations, feeder monitoring points, and distributed generation interconnection sites. They enable precise voltage measurement for SCADA systems, fault detection algorithms, and automatic voltage regulation equipment. The epoxy resin construction proves particularly valuable in underground distribution systems where moisture resistance is paramount.

Industrial plants employ these transformers for process control systems, power quality monitoring, and equipment protection. Heavy industries such as steel mills, aluminum smelters, and chemical plants benefit from the JDZ's vibration resistance and immunity to conductive dust environments. The transformers integrate seamlessly with capacitor banks for power factor correction and harmonic filter banks for power quality improvement.

Commercial building electrical systems incorporate JDZ transformers for main service metering, tenant submetering, and emergency power system monitoring. Their flame-retardant properties make them suitable for installation in electrical rooms without additional fire protection measures. Data centers particularly value their accuracy and reliability for power usage monitoring and UPS system control.

Renewable energy installations, including solar farms and wind power plants, utilize these transformers for grid interconnection metering and protection. Their wide temperature tolerance accommodates outdoor installation in varying climatic conditions, while their resistance to salt spray makes them suitable for coastal wind farm applications.

Advantages of Using Epoxy Resin in Voltage Transformers

The utilization of epoxy resin in JDZ Single-Phase Voltage Transformers delivers numerous technical and operational advantages over traditional insulation methods, establishing it as the preferred choice for modern electrical applications.

Epoxy resin's superior dielectric properties provide exceptional insulation performance, with dielectric strength typically 5-10 times greater than conventional insulating materials. This allows for more compact transformer designs without compromising electrical clearance requirements. The homogeneous nature of the cast resin eliminates interfaces between different insulation materials, preventing dielectric weakness points that could lead to premature failure.

The moisture resistance of epoxy resin represents a significant improvement over paper-oil or varnished insulation systems. Unlike cellulose-based materials that absorb moisture over time, epoxy forms an impermeable barrier that maintains consistent insulation resistance throughout the transformer's service life. This characteristic proves invaluable in humid environments or applications subject to periodic condensation.

Mechanical stability is another key benefit, with the cured resin forming a rigid matrix that immobilizes all internal components. This prevents winding movement during short-circuit events, a common failure mode in conventional designs. The encapsulation also protects against dust, chemicals, and corrosive atmospheres that could degrade other insulation systems.

Thermal performance advantages include better heat dissipation compared to oil-filled units and superior thermal cycling tolerance versus dry-type designs. The epoxy resin's coefficient of thermal expansion can be engineered to match that of the embedded conductors, minimizing thermal stress during load variations. This results in improved long-term stability of electrical parameters.

From a maintenance perspective, JDZ Single-Phase Epoxy Resin Cast Voltage Transformer require virtually no routine maintenance, eliminating the need for periodic oil testing, drying out procedures, or insulation resistance measurements. The sealed construction prevents contamination ingress and maintains consistent performance characteristics over decades of service.

Environmental benefits include the absence of flammable insulating oil, reducing fire hazards and eliminating potential soil contamination risks. Modern epoxy formulations meet stringent environmental regulations regarding volatile organic compounds and hazardous substance content.
