JDZW Outdoor Single-Phase Epoxy Resin Cast Voltage Transformer

Ceho's JDZW Outdoor Single-Phase Epoxy Resin Cast Voltage Transformer has the following features: Epoxy resin is fully vacuum-cast: bubble-free, UV-resistant, anti-aging, and with low local discharge. It is suitable for harsh environments such as high altitude, high humidity, and heavy pollution. The single-phase structure supports phase-to-ground (Un/√3) or phase-to-phase (Un) wiring methods, and is suitable for overhead lines, pole-mounted switches, ring main units and other scenarios.

High-precision measurement: The metrological grade accuracy can reach 0.2 grade, and the protection grade is 3P or 6P, meeting the dual requirements of electric energy metering and relay protection.

Built-in high-voltage fuses (for some models) : such as JDZW-10R, it is equipped with A and B dual-end fuses, effectively preventing the expansion of internal faults.

Standard compatibility: JDZW Outdoor Single-Phase Epoxy Resin Cast Voltage Transformer complies with international standards such as IEC 61869-3, IEEE C57.13, and GB20840, and supports global project applications

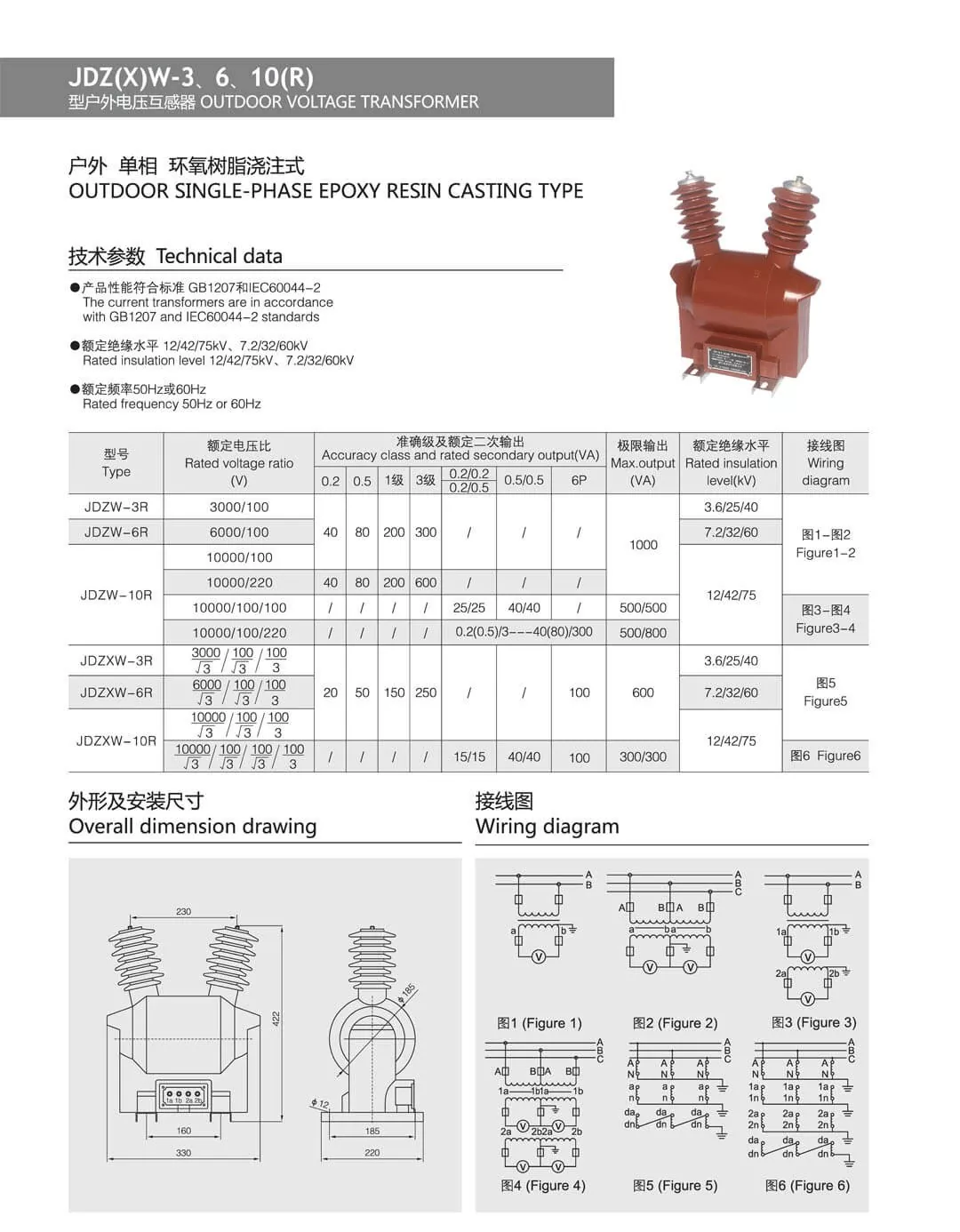

TECHNICAL DATA

● The transformer accord with the standards of GB1207-2006,IEC60044-2:2003

● Three-phase

● Rated secondary current 5A or 1A

● Ambient temperature  -5℃ ～ +50℃

11. Rated output and its relative accuracy class are only one option.

2. If the user data exceeds the above range, we may need to conduct specific negotiations.

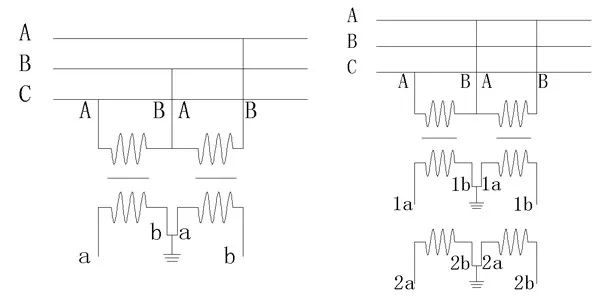

Wiring diagram

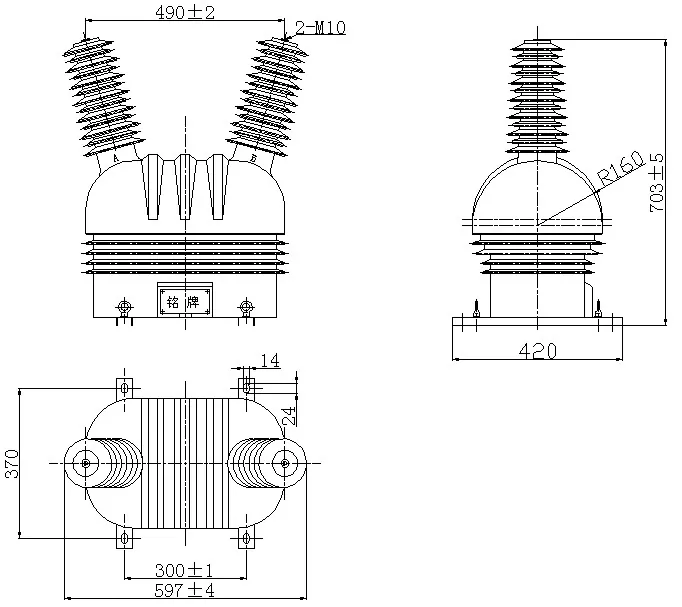

Overall dimensions
