LZZB Epoxy Resin Cast Insulated Post Type Current Transformer

The LZZB Epoxy Resin Cast Insulated Post Type Current Transformer is a fully enclosed product with an epoxy resin cast column structure. It is applicable to relay protection for measuring electric energy and current in power systems with a rated frequency of 5DHz / 60Hz and a rated voltage of 40.5kV. The features of this product include high dynamic thermal stability, large output capacity twice as much, stable insulation performance and dirt resistance.

The primary winding, secondary winding, ring core and coil of LZZBJ9-35 are wrapped in epoxy resin cast insulators. It is a fully enclosed structure, featuring excellent thermal insulation performance and moisture-proof capacity. A junction box is provided at the secondary wiring point. There is a hole on each of the front and side of the junction box, which matches the terminal for wire output and is used for wire output. There are grounding bolts and four installation holes on the product's base plate for installation.

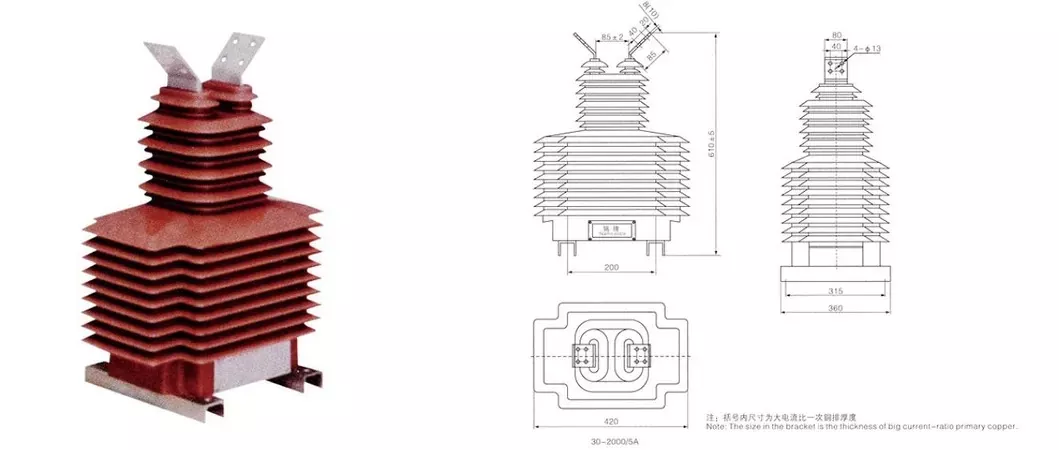

Product Drawing

Main Technical parameter (LZZB9-35/250W1)

1.Rated insulation level: 40.5/95/185kV

2. Power factor of load: cos ø=0.8(Lagging)

3. Rated secondary current: 5A(or 2A,1A)

4.Rated Frequency:50Hz or 60Hz

5.Ambient Temperature:-5℃~+40℃

6.Product standard: IEC185,GB1208-2006

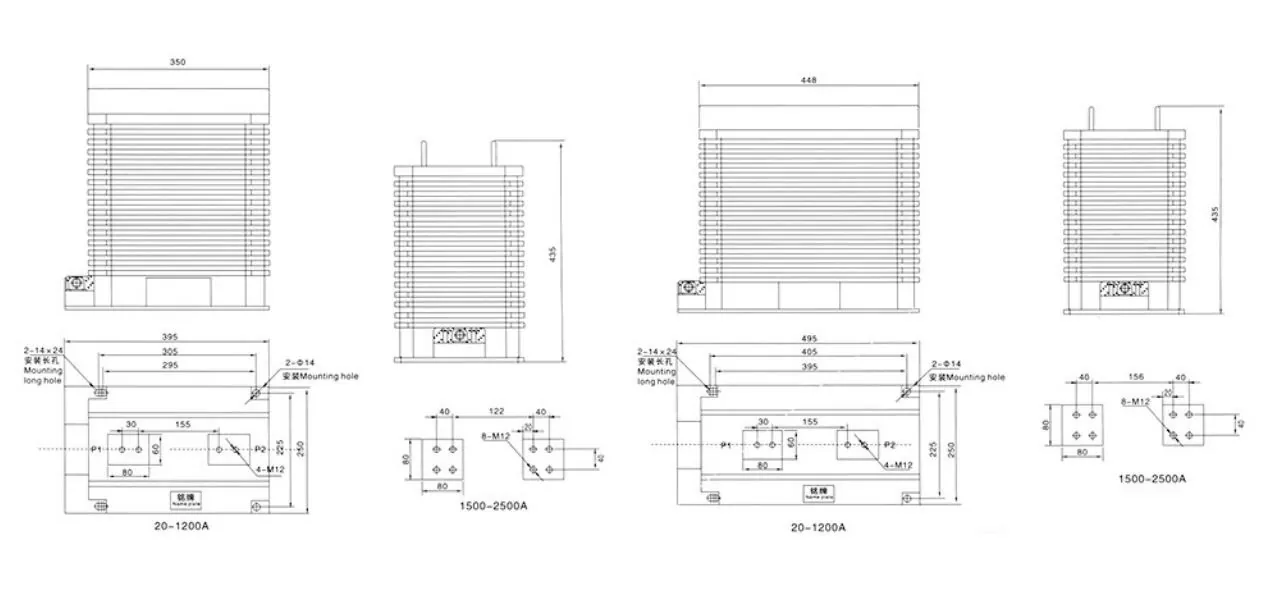

Overall Dimension

LZZB Epoxy Resin Cast Insulated Post Type Current Transformer is applied to air-insulated switch cabinets KYN28A, XGN15, and HXGN17. High-voltage rooms for ring main units, box-type transformers, and cable distribution boxes; Power plant plant electricity consumption, industrial and mining distribution room metering/protection; High-altitude, high-humidity and heavily polluted areas (anti-pollution type with increased climbing distance is optional)
