LZZBJ Reinforced Epoxy Resin Cast Post Type Current Transformer

LZZBJ Reinforced Epoxy Resin Cast Post Type Current Transformer is one of Ceho factory's products, we can offer different types of electric devices for you to choose, and offering competitive prices. If you want to get high quality, high efficient, and easy-to-maintain solutions, you can contact us now to get our factory price list. Both new and old customers are welcomed.

Send Inquiry

Product Description

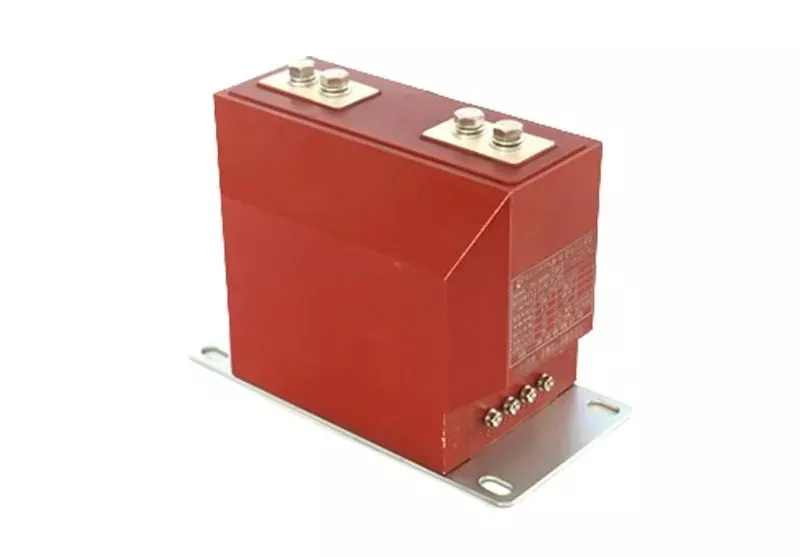

Ceho provides high quality LZZBJ Reinforced Epoxy Resin Cast Post Type Current Transformers. Crack-resistant and impact-resistant, suitable for cabinets with high mechanical stress;Fully sealed pillar: P1/P2 are M10-M16 copper/aluminum bars or double-hole bars, with a base of 4 × Φ 14mm, and can be installed in any direction;The microcrystalline alloy or high-quality silicon steel sheet core adopted in transformer features high magnetic permeability and good error linearity. Secondary terminal: 6-12 cores inside the protective cover, can be expanded with double windings (0.2S/0.5/5P10/10P10) or three windings (metering + protection + residual);Low temperature: -25 ℃ to +40 ℃, altitude: ≤ 2,000 m (3,000 m for plateau type), humidity: 95%, no condensation; Flame retardant grade V-0, CTI ≥ 600, compliant with RoHS;Weight: 25-35 kg for 10 kV class; 24 kV grade 32-45 kg 40.5 kV class ≤ 81 kg.

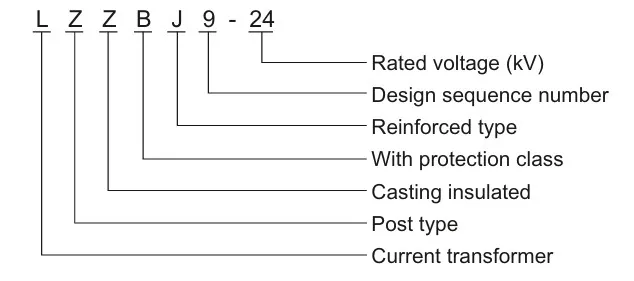

Model

Product Parameters

NO	Item			Unit	Value
1	Rated voltage			KV	40.5
2	Rated insulation level	Power frequency withstand voltage	Dry test		95
			Wet test		80
		Lightning impulse withstand voltage (peak)			185
3	Rated current			A	1250,1600,2000
4	Rated short-circuit breaking current			KA	20,25,31.5
5	Rated operation sequence				0-0.3s-combination-180s-combination
6	Rated short circuit current breaking times			times	12
7	Rated short circuit closing current (peak)			KA	50,63,80
8	Rated peak withstand current
9	Rated short-time withstand current			KA	20,25,31.5
10	Rated short circuit continuous current			S	4
11	Average opening speed			m/s	1.5±0.2
12	Average closing speed				0.7±0.2
13	Contact closing bounce time			s	≤2
14	Three-phase combined (minute)gate synchronous time difference				≤2
15	Closing time				≤150
16	Opening time				≤60
17	Mechanical life			times	10000
18	Rated operating voltage and auxiliary circuit rated voltage			V	DC220,110,24
					AC220,110,24
19	DC resistance per phase circuit(without transformer)			μ Ω	≤100
20	Dynamic and static contacts allow wear thickness			mm	3
21	weight			kg	800

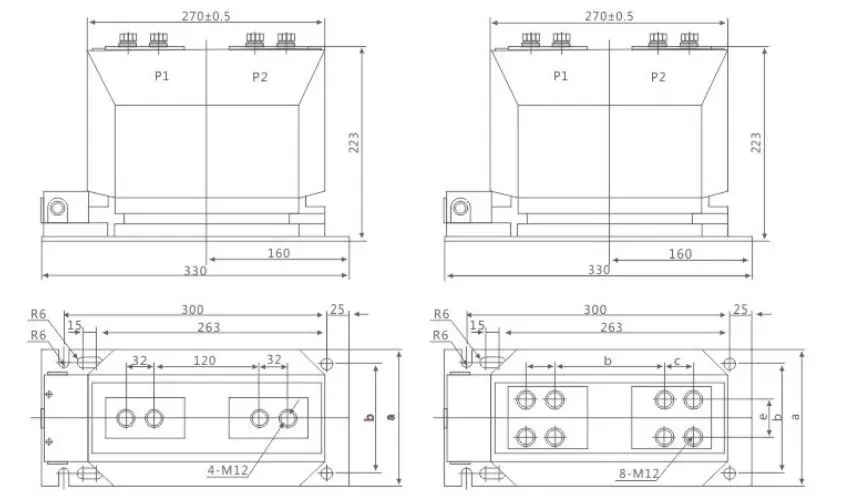

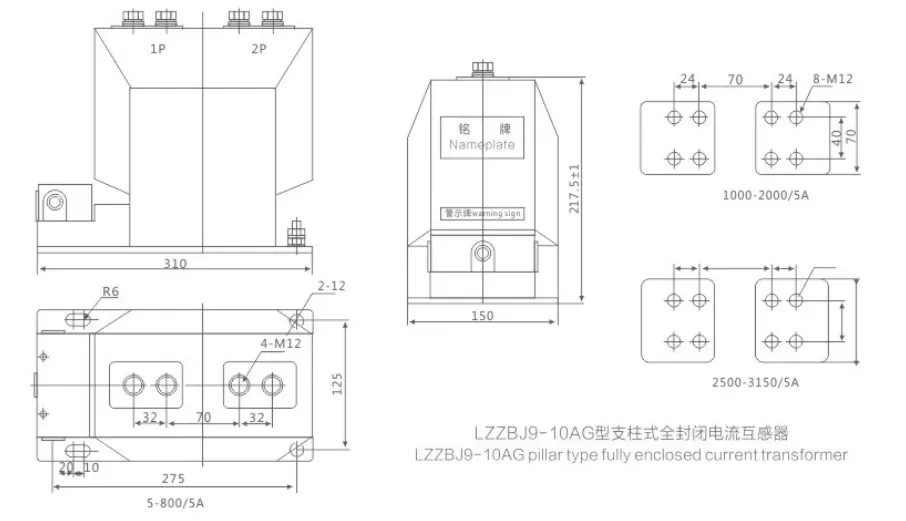

Drawing

Quick Selection Check

1. Rated voltage → Select 7.2kV / 12kV / 24kV / 40.5kV

2. Rated primary current → According to load or busbar specifications (100A, 300A, 600A, 1,250A)

3. Accuracy and load → Measurement 0.2S/0.5 (10-20 VA); Protect 5P10/10P15 (15-30 VA)

4. Short-time thermal current → Match the system short-circuit current (20 kA, 31.5 kA, 50 kA, 80 kA/1 s)

5. Installation method → Pillar upright/side installation/upside down installation; The base is fixed with 4-M12 expansion bolts

6. Special Requirements: High altitude 3,000m, low temperature -40 ℃, anti-pollution Grade III, dual transformation ratio, tap type, with shielding cover
