LZJC Large Capacity Epoxy Resin Cast Current Transformer

Ceho is a LZJC Large Capacity Epoxy Resin Cast Current Transformer manufacturer. From the perspective of overall strategy, the top priority now is to seize market opportunities and significantly enhance the quality level of our circuit breaker grounding switches, Sf6 outdoor circuit breakers, and gas-insulated metal armored switches. "Honesty, efficiency and harmony" are our corporate spirits. We will serve domestic and foreign customers with high-quality services, excellent quality and good reputation. Our products are diverse in variety, high in quality, reasonable in price and novel in style, which are highly recognized and trusted by users and can meet the constantly changing economic and social demands.

The LZZBJ12-10A current transformer is suitable for power measurement, current measurement and monitoring, and relay protection in power systems operating at 50Hz, 10KV and below. LZJC Large Capacity Epoxy Resin Cast Current Transformer is a fully enclosed column structure, insulated by epoxy resin casting. The creepage distance of the external insulation meets the requirements of Grade II pollution level. The product complies with the GB1208-97 "Current Transformer" standard.

Product Use Environment

LZZBJ12-10A Current transformer Rated secondary current: 5A

Rated insulation level primary to secondary and ground 11.5/42/75kV

Load power factor: COSφ=0.8(lag)

Partial discharge level: ≤20PC

Instrument security factor: ≤10

Rated primary current, accurate stage combination and rated output, short-time thermal current rating:

Technical Parameter

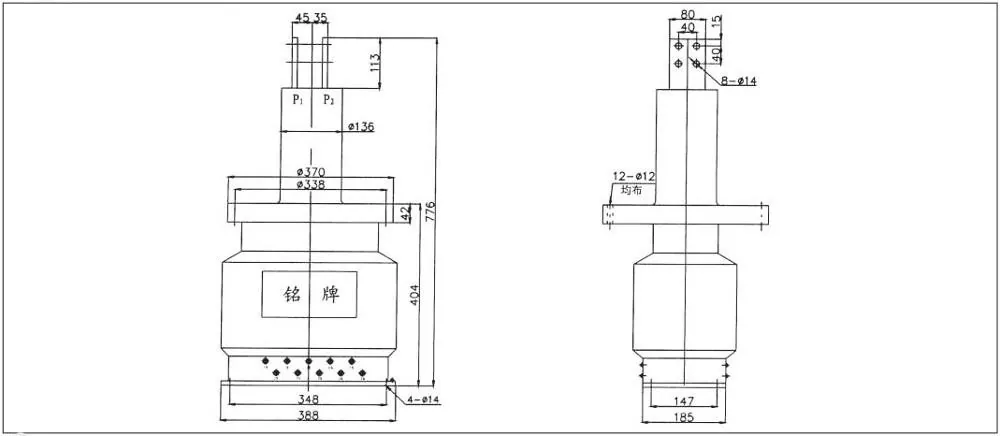

DRAWING

Services

1. Send the technical data, better for all useful information; we will make a good recommendation.

possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
