VS1 Indoor High-Voltage Vacuum Circuit Breaker

Ceho can offer VS1 Indoor High-Voltage Vacuum Circuit Breaker with comprehensive after-sale service and timely delivery. The working principle of this vacuum circuit breaker is that when the moving contact and the static contact are separated under the action of the operating mechanism, an electric arc is generated between the contacts, and the surface of the contacts volatilizes steam at high temperatures. The special shape of this product contact design generates a magnetic field when current passes through. Under the action of this magnetic field, the electric arc moves rapidly along the tangential direction of the contact surface. Some metal vapor condenses on the metal cylinder (shield), and the arc naturally passes through zero and then goes out. When the arc goes out, the dielectric strength between the contacts recovers rapidly

Send Inquiry

Product Description

You can rest assured to buy VS1 Indoor High-Voltage Vacuum Circuit Breaker from Ceho. The vacuum circuit breaker is suitable for use in power systems with a rated voltage of 12kv for protection purposes, as well as in control units of power grid equipment and industrial power equipment. It can be equipped with KYN28(GZS1). Various types of switch cabinet panels such as XGN and GG-1A. Related products: isolation trolleys, fuse trolleys and other voltage transformer trolleys.

Product Standards

♦ IEC62271-100 High Voltage Switchgear and Controlgear Part 100: AC Circuit-breakers

♦ GB1984 High VoltageAC Circuit-breakers

♦ GB/T11022 Common Specifications for High-voltage Switchgear and Controlgear Standards

♦ JB/T 3855 High VoltageAC Vacuum Circuit-breakers

♦ DL/T402 Specification of High-voltage AC Circuit-breakers

Environmental Conditions

♦ Ambient temperature:-15℃~+40℃;

♦ Altitude: ≤1000m;

♦ Relative humidity: daily average ≤95%, monthly average ≤90%；

♦ Earthquake intensity: ≤8 level;

♦ Places without fire, explosion hazard, serious filthy, chemical corrosion, as well as intense vibration

Technical Date

No.	Item	Unit	Date
1	Rated voltage	kv	15 ? ? ? ? ? ? ? ? ? ? ? ? ? ?24
2	Rated short-time power frequency withstand voltage(1min)		90/102 ? ? ? ? ? ? ? ? ??65/79
3	Rated lightning impulse withstand voltage		50/59 ? ? ? ? ? ? ? ? ??125/145
4	Rated frequency	Hz	50
5	Rated current	A	630 ? ? ? ? ? ? ? ? ? ? ? ?630 ? ? ? ? ? ? ? ? ? ? ? ? ?1250
			1250 ? ? ? ? ? ? ? ? ? ? ?1250 ? ? ? ? ? ? ? ? ? ? ? ? 1600
6	Rated short-time tolerant current	KA	20 50 50	25 63 63	31.5 80 80
7	Rated peak tolerant current
8	Rated short-circuit closing current (peak)
9	Rated operation sequence		O-0.3s-CO-180s-CO
10	Mechanical life	Times	20000
11	Rated operational voltage	V	AC/DC220,AC/DC110
12	Opening time	ms	20~50
13	closing time		30~70
14	Rated short circuit current breaking times		50

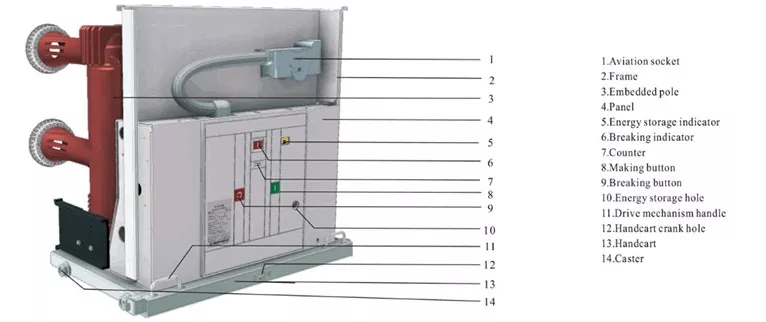

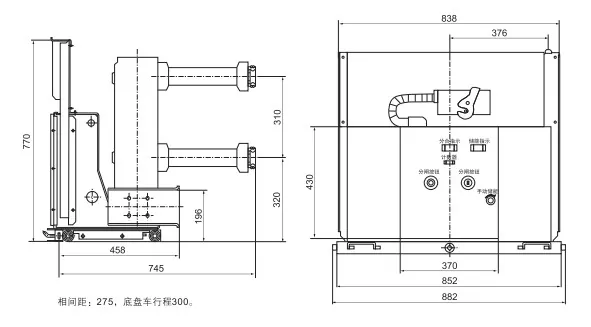

Overall dimension drawing
