American Pre-installed Box-Type Substation

The American Pre-installed Box-Type Substation is a power distribution solution designed to provide a safe and reliable power supply for industrial and commercial applications. This substation features a prefabricated, compact structure, fully assembled at the factory, and can be directly installed and used in the field. The substation can carry 12,000 volts and is equipped with multiple energy-efficient features. This product is manufactured using high-quality materials and features a weather-resistant, dust-proof enclosure, effectively resisting environmental damage.

Send Inquiry

Product Description

This American Pre-installed Box-Type Substation is also equipped with a variety of safety devices, including a grounding system, fault protection devices, and surge arresters, ensuring the power system operates safely and reliably at all times. Furthermore, the product design emphasizes ease of installation and operation. Its pre-assembled components include transformers, circuit breakers, and switchgear, effectively shortening the installation cycle and reducing labor costs. The substation is also equipped with an advanced monitoring system, allowing operators to monitor and manage the power system in real time through a central control room. The American-style prefabricated modular substation is a high-quality solution for industrial and commercial applications, meeting safe and reliable power distribution needs in a cost-effective manner.

Technical Parameters

Serial Number	Item	Unit	Technical parameters
1	Rated voltage	kV	10/0.4
2	Max operating voltage	kV	12
3	Rated frequency	Hz	50
4	Rated capacity	kVA	150-1600
5	1min power frequency withstand voltage	kV	35
6	Lightning impulse voltage	kV	75
7	Cooling method		ONAN
8	Breaking current of high voltage backup fuse	kA	50
9	Breaking current of plug-in fuse	kA	2.5
10	Environment temperature	℃	-35~40
11	Allowable Coil temperature rising	℃	65
12	No-load voltage regulation		±5% or± 2*2.5%
13	Noise level	db	50
14	IP degree		IP43

Altitude	not more than 1000m
Ambient temperature	-35℃ ~+40℃
Relative humidity	the daily average is not more than 95%, the monthly average is not more than 90%
transformer	Intelligent integrated substation selection of low loss, oil-immersed, fully sealed S9, S10, S11 series transformer, can also choose resin insulation or NOMEX paper insulation environmental protection type dry transformer

● Fuse

The high voltage side of American Pre-installed Box-Type Substation adopts backup protection fuse and plug-in fuse in series for full range protection.The backup protection fuse is an oil-immersed high-voltage current-limiting fuse with large breaking capacity.Plug-in fuses will only start when there is a fault inside the transformer. The dual-induction fuse can provide dual protection for current and temperature. If it is blown, the fuse core can be easily replaced on site.

Structure and operation sequence

1. The layout

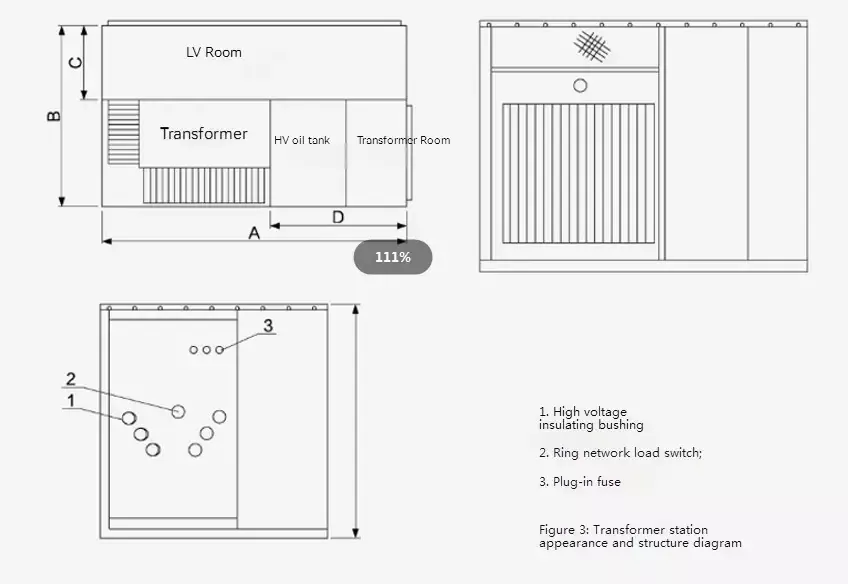

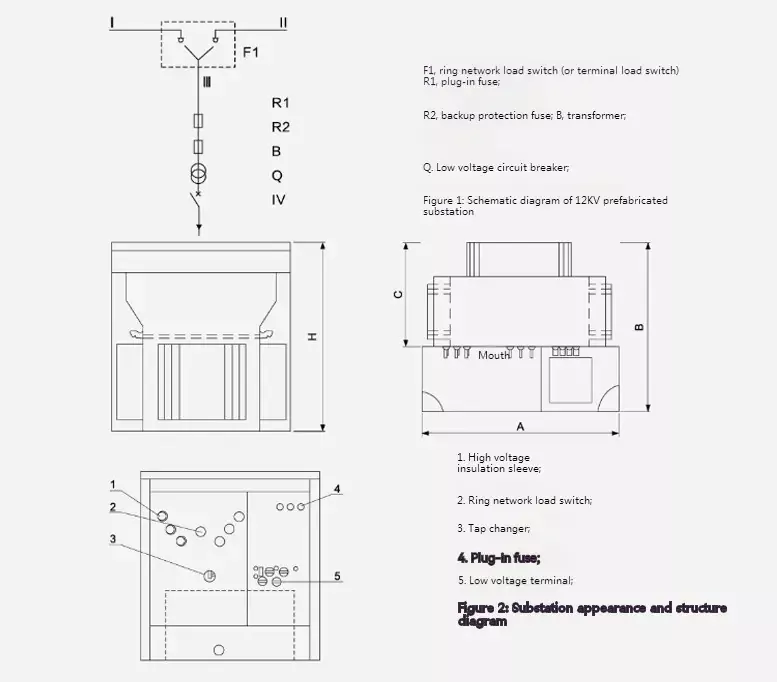

The shape and structure of American Pre-installed Box-Type Substation is shown below.The tank is divided into the upper high-pressure tank and the lower transformer tank.These two parts are only electrically connected and the oil does not circulate.Among them,"I" and "I" lines are ring network feeders,"ll" branch is transformer branch, and "V" is low voltage output.

The substation can be used for ring network power supply system and terminal power supply system.The feed of the line and the "l III" branch is switched by the load switch of the ring network.At the same time, the high-voltage side of the transformer is equipped with a fuse at the incoming end, which can protect the branch circuit and avoid short-circuit fault, overload and over-temperature.You can also choose to install high-voltage display devices and lightning arresters.and the low-voltage end of the transformer is output after passing through the ammeter and the low-voltage circuit breaker.

Dimensions and Weight

Capacity	A	B	C	H	Weight（KG）
Below 200kVA	1830	1420	820	1850	Below 2800
250~400kVA	1830	1450	850	1980	3000~3300
500~630kVA	1830	1480	880	2070	3600~3950
800kVA	2200	1700	950	2170	4500

2. The transformer

For American Pre-installed Box-Type Substations, we use the new S9 and S11 series three-phase oil-immersed transformers with low no-load losses, low temperature rise, low noise and low height. Both no-load losses and load losses are lower than those of the original S9 transformer.

The transformer adopts a fully sealed structure to effectively isolate air pollution and moisture. A 40-90mm air cushion is left at the top of the oil tank, which together with the corrugated structure of the oil tank shell plays a role in cooling and reducing internal pressure.

Dimensions and Weight

Capacity	A	B	C	H	Weight（KG）
315kVA	2560	1600	600	1000	3050
400kVA	2560	1600	600	1000	3270
500kVA	2560	1600	600	1000	3400
630kVA	2560	1600	600	1000	3900
800kVA	2760	1600	800	1000	4200
1000kVA	2760	1950	800	1000	4800
1250kVA	2910	1950	800	1000	5400
