European Type Outdoor Prefabricated Substation

European Type Outdoor Prefabricated Substation has a three-in-one integrated design combining high-voltage switchgear, transformers, and low-voltage switchgear for strong system completeness; Comprehensive high/low-voltage protection ensures safe, reliable operation and simplified maintenance; It features compact footprint, reduced investment, short production cycle, and easy mobility; Flexible wiring configurations; Unique structure: Double-layer honeycomb composite panel enclosure provides robust insulation, heat dissipation, ventilation, aesthetic appeal, and high IP rating. Enclosure materials include stainless steel, titanium alloy, aluminum alloy, cold-rolled steel, and color-coated steel; Multiple configurations available: general-purpose, villa-style, compact, etc. High-voltage ring main units can be equipped with network automation terminals (FTUs) for reliable detection of short circuits and single-phase ground faults. Features “four remote” capabilities (remote control, remote measurement, remote signaling, remote adjustment), facilitating distribution network automation upgrades.

Technical Parameters

Note: Items 5 and 6 are not required when the transformer capacity is less than 200kVA.

Conditions of Use

Users need to provide the following information if ordering:

• Altitude: W 1000m;

• Ambient temperature: ·25. (:~+40. (:;

• Relative humidity: the daily average value is not more than 95%, and the monthly average value is not more than 90%;

• Anti-vibration level: horizontal acceleration 0.4m/s2, vertical acceleration 0.15m/s2;

• Please confirm that the installation site will not suffer from severe shock, serious pollution and chemical corrosion, and there is no conductive dust or explosion hazard.If it does not meet the requirements of normal use conditions, please contact Ceho for solution.

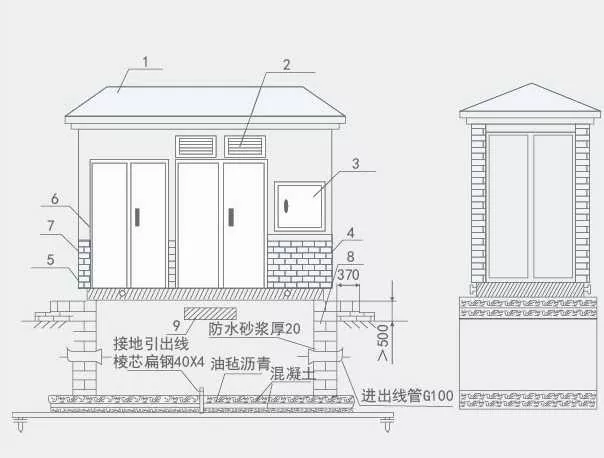

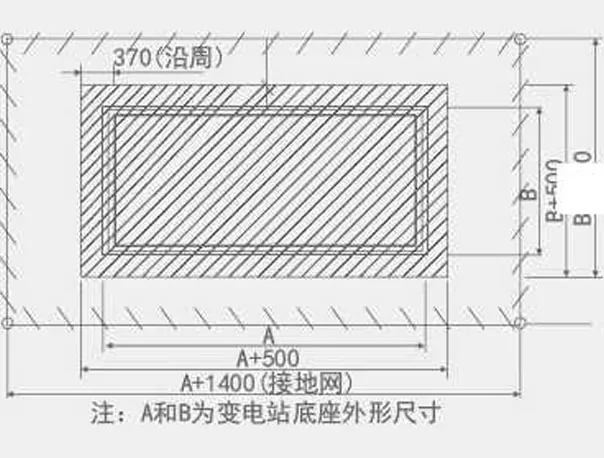

Installation dimension drawing

1. Roof

2. Blinds

3. External measuring box

4. Lifting ring

5. Slot rigid chassis

6. Door

7. Strip brick, imitation brick wall surface

8. Concrete foundation

9. Tomb foundation vent

Need to know when ordering

At the time of your order, you must provide the following information:

·Model, capacity, quantity, color and size requirements, shell material;

·Transformer model, performance, connection mode, tapping range and impedance requirements;

·High voltage side primary wiring scheme, component model, specification and requirements;

·Transformer oil (25 #, 45 #, high ignition point oil);

·Configuration requirements for intelligent power management networks or property management networks;

·Environmental requirements for use.
