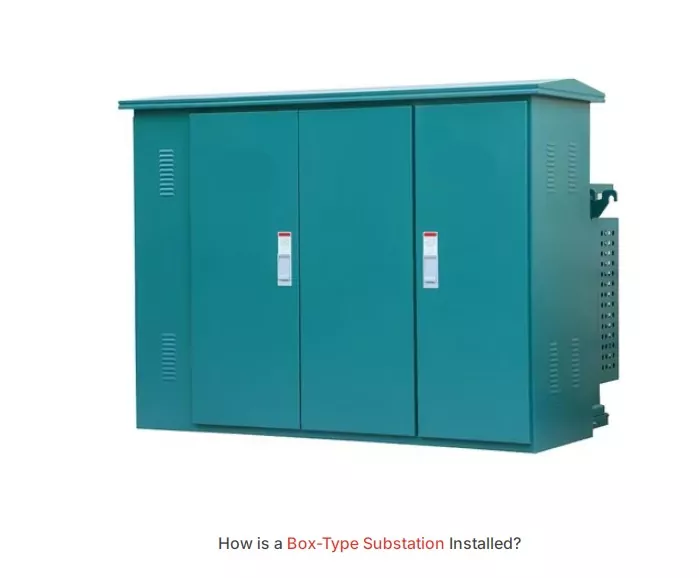

Geographical Box-Type Substation

Geographical Box-Type Substations are revolutionizing power distribution, offering compact, efficient, and highly reliable solutions for modern electrical systems. Designed to meet the growing demands of urbanization, industrial development, and distributed energy generation, these substations seamlessly blend sleek aesthetics with advanced functionality. Widely deployed across diverse applications—from urban grids to renewable energy projects—this substation delivers unparalleled versatility. This guide will delve into the core components, design principles, and advantages of containerized substations, helping you fully grasp their pivotal role in upgrading power infrastructure.

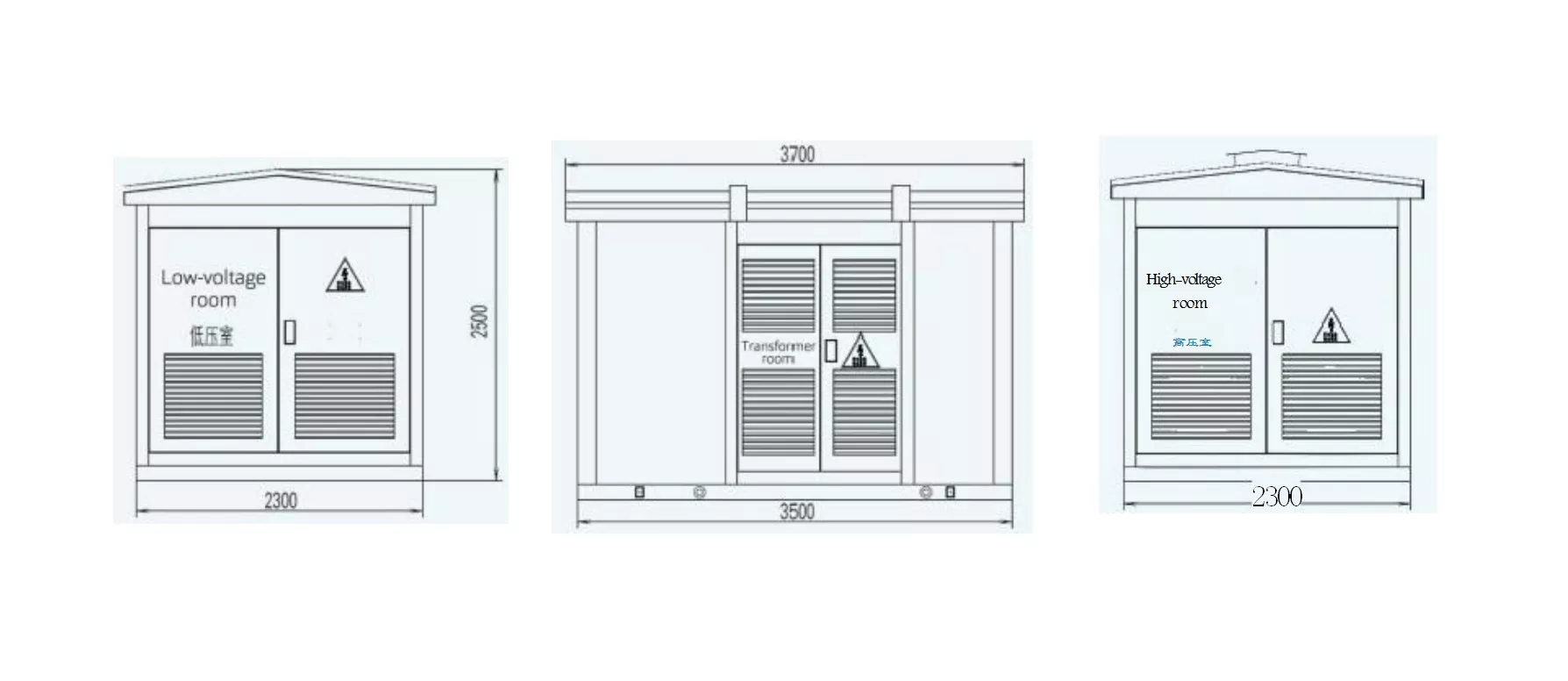

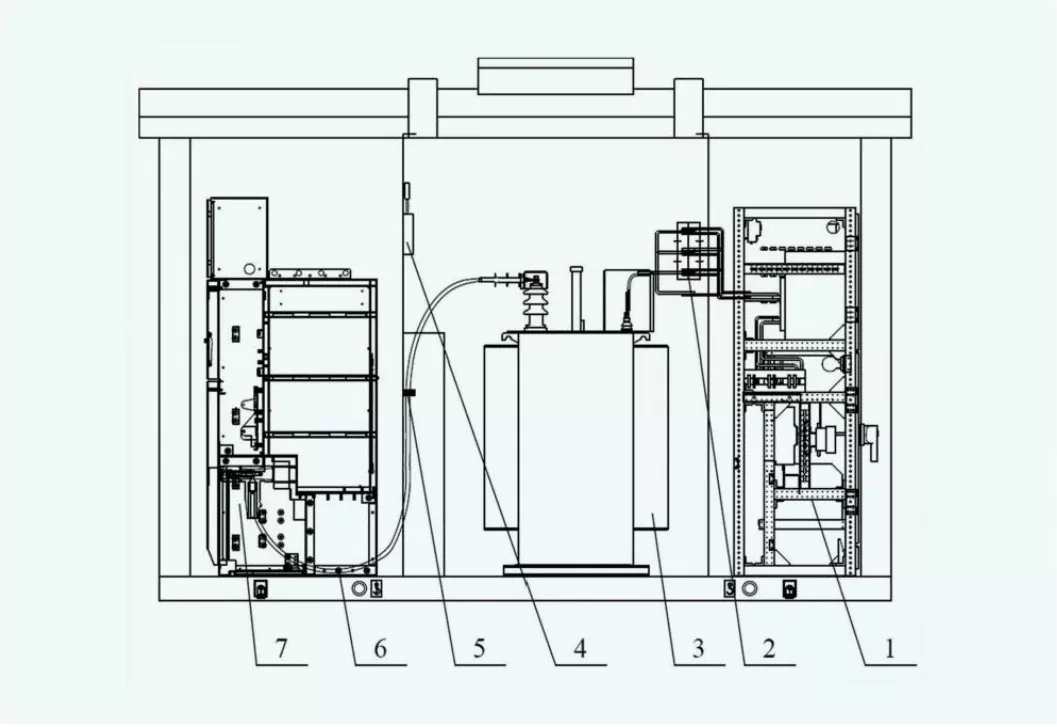

Box boundary drawing: (take 630kVA as an example)

Key Components

● High voltage switchgear

Responsible for input and disconnection of high voltage power supply.Key technical parameters include rated voltage (12kV, 24kV or 36kV) and short-circuit breaking capacity (25kA to 40kA).

● Transformer

Used to reduce high voltage to lower usable voltage.Parameters include capacity (ranging from 50kVA to 2500kVA), insulation class and efficiency (usually above 98%).

● Low Voltage Switchgear

Responsible for distributing power to end users and providing circuit protection.Components include circuit breakers, fuses and meters.Rated voltages range from 0.4kV to 1kV and rated currents up to 6300A, depending on the application.

● Enclosure

The enclosure of a box-type substation can provide physical protection and environmental sealing.Our products are generally IP54 or IP65 protection level design, outdoor and harsh environment has a high adaptability.

● Auxiliary Power System

This is for powering internal equipment (cooling fans, heaters and lighting).Parameters include rated voltage (220V or 110V AC/DC) and power capacity.

● Cooling System

Ensure that transformers and other components operate within thermal limits.Cooling mode can be natural air cooling (AN) or forced air cooling (AF), please judge according to load capacity and environment.

● Protection and Control System

It contains relays, control units and monitoring devices for the safety and stability of the system.Protection settings require current and voltage thresholds that apply to the entire system.

● Earthing System

Provides critical safety against electric shock and ensures fault current dissipation.The grounding system consists of galvanized steel or copper tape designed for low resistance, below 1Ω in most installations.

Installation

There are several key steps to the installation of the Geographic Box-Type Substation.

1. Site Selection and Preparation

The site needs to be flat, stable and well drained.But also to meet the safety clearance and access requirements, please choose according to your actual situation.

2. Foundation Construction

Construct reinforced concrete foundations to support the weight of the substation and ensure structural stability.

3. Positioning and Assembly

The box is placed on the foundation using lifting equipment and secured against mechanical forces with bolts or anchors.

4. Electrical Connection

Connect the incoming and outgoing cables to the high and low voltage terminals.Pay attention to the grounding must be correct, is very important to the system safety.

5. Testing and Commissioning

Complete Installation Perform insulation resistance tests, calibration of protective relays and functional checks on all components. Before powering up the substation, it is a good idea to reconfirm your local electrical code.
