Dry Type Amorphous Alloy Distribution Transformer

Ceho, a supplier of Dry Type Amorphous Alloy Distribution Transformer, can offer comprehensive product types for you choose, together with reliable technical support. An amorphous alloy dry-type transformer is a new type of low-loss dry-type transformer. Its most significant feature is low no-load loss and obvious energy-saving effect. It can save a lot of power plant investment and reduce the consumption of power generation fuel, thereby reducing the impact on the atmospheric pollution environment.

Send Inquiry

Product Description

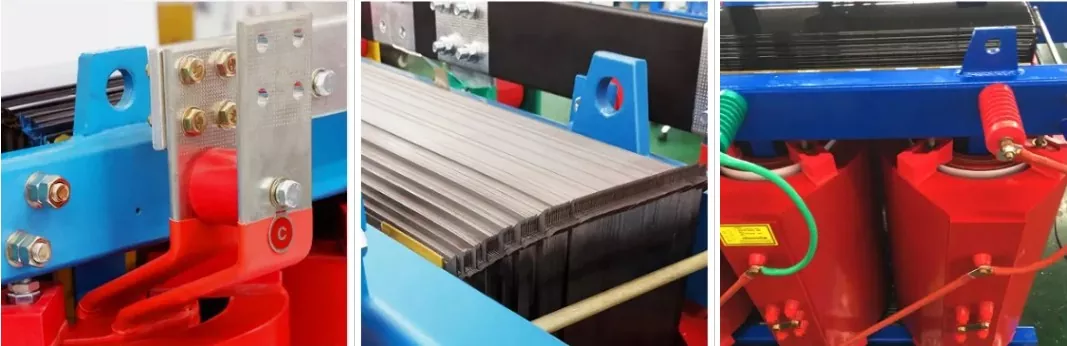

Due to low loss, low heat generation, and low-temperature rise, the operating performance of Dry Type Amorphous Alloy Distribution Transformers is also very stable. Ceho's SCR(B)H15 series amorphous alloy products inherit the advantages of SG products such as good heat dissipation, no need for molds, and flexible design. At the same time, they draw on the SC product's barrel-type coils, which have good lightning impact resistance and longitudinal air channels in operation. This product has self-cleaning characteristics and has been improved to launch an innovative generation of three-phase, three-column, and semi-encapsulated non-grade alloy dry-type transformers with energy-saving, safety, and environmental protection concepts.

Cceho's non-grade alloy dry-type transformers have a product capacity range of 30kVA~3150kVA and a voltage level of up to 35kV. It is currently a domestic manufacturer with relatively complete product capacity and voltage levels of non-grade alloy dry-type transformers.

Technical parameters

Three-Phase Amorphous Alloy Dry-Type Distribution Transformers
Rated Capacity: 30-2500 kVA
Connection Group Designation: Dyn11 or Yyn0
High Voltage (kV): 35, 20, 11, 10.5, 10, 6.6, 6.3 ; Low Voltage (kV): 0.4
Insulation Level: LI75AC35/LI0AC3
Rated Capacity (kVA)	No-Load Loss (W)	Load Loss			No-Load Current (%)	UK (%)	LPA (AN）dB	LxA (AN）dB
Rated Capacity (kVA)	No-Load Loss (W)	100℃（B）	120℃（F）	145℃（H）	No-Load Current (%)	UK (%)	LPA (AN）dB	LxA (AN）dB
200	190	2370	2530	2710	0.4	4	52	64
250	219	2590	2760	2960	0.4	4	52	64
315	266	3270	3470	3730	0.3	4	54	66
400	295	3750	3990	4280	0.3	4	54	66
500	342	4590	4880	5230	0.3	4	55	67
630	390	5610	5960	6440	0.3	6	56	68
800	456	6550	6960	7460	0.3	6	57	69
1000	523	7650	8130	8760	0.2	6	57	69
1250	618	9100	9690	10300	0.2	6	59	71
1600	722	11000	11700	12500	0.2	6	60	72
2000	950	13600	14400	15500	0.2	6	62	74
2500	1140	16100	17100	18400	0.2	6	62	75

10kV NX1 Three-Phase Amorphous Alloy Dry-Type Distribution Transformers
Rated Capacity: 30-2500 kVA
Connection Group Designation: Dyn11 or Yyn0
High Voltage (kV): 10 ; Low Voltage (kV): 0.4
Insulation Level: LI75AC35/LI0AC3
Rated Capacity (kVA)	No-Load Loss (W)	Load Loss			No-Load Current (%)	UK (%)	LPA (AN）dB
Rated Capacity (kVA)	No-Load Loss (W)	100℃（B）	120℃（F）	145℃（H）	No-Load Current (%)	UK (%)	LPA (AN）dB
200	140	2135	2275	2440	0.4	4	50
250	160	2330	2485	2665	0.4	4	50
315	195	2945	3125	3355	0.3	4	52
400	215	3375	3590	3850	0.3	4	52
500	250	4130	4390	4705	0.3	4	53
630	290	5050	5365	5760	0.3	6	54
800	335	5895	6265	6715	0.3	6	55
1000	385	6885	7315	7885	0.2	6	55
1250	455	8190	8720	9335	0.2	6	57
1600	530	9945	10555	11320	0.2	6	58
2000	700	12240	13005	14005	0.2	6	60
2500	840	14535	15445	16605	0.2	6	60

Ceho Factory Quality Assurance

1.Routine test: Measurement of winding resistance, Measurement of voltage ratio, Check of vector group, Mesurement of impendance voltage and load loss,Measurement of no load loss and current,Separate-source voltage withstand test,Induced overvoltage withstand test,Dimension checking

2.Type tests: Lighting impulase test,Temperature rise test

3.Special tests: The company is accelerating the cultivation and development of productivity, and creating high-level intelligent production.

Our advantages:

DESIGN ALIBILTY:Our design team can combine the needs of customers from East Europe, Africa, South America, the Middle East, Southeast Asia and other countries to customize transformers for different local market demand. As a Chinese manufacture with more than 25 years' experience We can produce transformer with European quality at a very competitive price, and perfect replacement of imported products from Europe, so that users can use high-quality power products with the lowest cost to get more advantage in their market.

OUR SERVICE: With 15 years of experience in electrical line, we are committed to providing comprehensive technical supports , design and customized solutions for our partners .And provide timely service for each step within 24 hours from design ,production, logistics, equipment installation ,to ensure clients with an efficiently and smooth operation of the projects! Partners recognition is the motivation and encouragement for us , we attach importance and persue to give one-stop service !

Operating Conditions

- Altitude below 1000 meters, temperature -25℃ to 40℃, humidity below 90% (+25℃)

- Vertical tilt angle not exceeding 5°, no location with severe vibration, outdoor wind speed not exceeding 35 m/s

- No gases or conductive dust that seriously affect the insulation of Dry Type Amorphous Alloy Distribution Transformer; no explosion hazard, no corrosion of electrical components

- If the above normal operating environmental conditions are exceeded, customers can consult with our company for a customized solution.
