Why Is Dry Type Transformer Essential for Modern Power Systems?

Dry Type Transformers are becoming increasingly popular in industrial, commercial, and residential applications due to their safety, efficiency, and environmental benefits. Unlike oil-immersed transformers, Dry Type Transformers use air instead of liquid insulation, which eliminates the risk of oil leaks and fire hazards. But what exactly makes them a top choice, and how do you select the right one for your application?

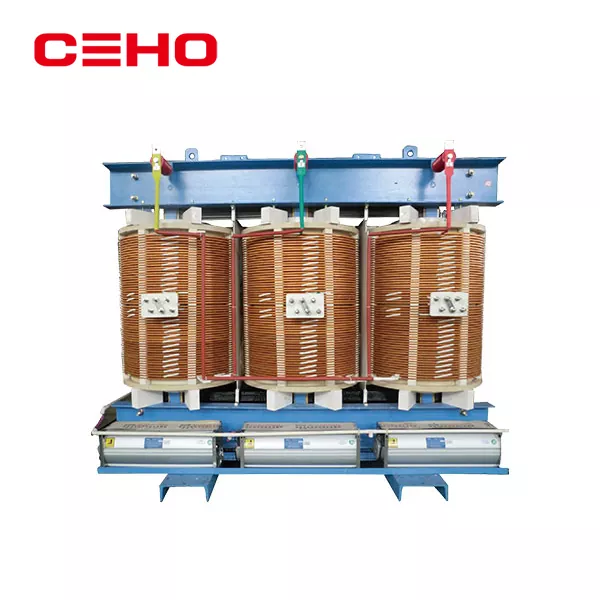

How Does a Dry Type Transformer Work?

A Dry Type Transformer operates using magnetic induction to transfer electrical energy from one circuit to another. Its windings are made of copper or aluminum and are insulated with high-quality epoxy resin, which provides excellent heat resistance and mechanical strength. The airflow around the windings naturally or via forced cooling dissipates heat, ensuring reliable operation even under heavy load conditions.

Key features include:

• Air-cooled insulation: Eliminates risk of oil fire and leakage.

• Epoxy resin-coated windings: High durability and reduced maintenance.

• Compact design: Suitable for indoor installations and tight spaces.

• Noise reduction: Less operational noise compared to oil-filled transformers.

Why Choose Dry Type Transformers Over Oil-Filled Transformers?

Choosing the right transformer type can significantly impact safety, maintenance, and efficiency. Here's a clear comparison:

From the table, it's evident that Dry Type Transformers are ideal for locations where fire safety, low maintenance, and environmental friendliness are priorities.

What Are the Technical Specifications of Our Dry Type Transformers?

CEHO POWER TECHNOLOGY GROUP CO., LTD. provides a wide range of Dry Type Transformers tailored for various industrial and commercial needs. Below is a simplified specification overview:

These specifications ensure that our Dry Type Transformers meet modern industry standards while providing long-term reliability.

Which Industries Benefit Most from Dry Type Transformers?

Dry Type Transformers are versatile and suitable for multiple industries:

1. Commercial Buildings: Office complexes and shopping centers require compact, low-noise transformers.

2. Industrial Plants: Factories benefit from high-efficiency transformers that can handle heavy loads.

3. Renewable Energy Systems: Solar and wind applications favor eco-friendly, maintenance-free transformers.

4. Data Centers: Critical facilities demand reliable, fire-safe transformers to protect sensitive equipment.

FAQ: Dry Type Transformer

Q1: What makes a Dry Type Transformer safer than traditional transformers?
A1: Dry Type Transformers use air as the primary cooling and insulating medium, eliminating the risk of oil leaks and fire. The epoxy resin-coated windings provide superior insulation, making them ideal for indoor installations and environments with strict fire safety regulations.

Q2: How often should a Dry Type Transformer be maintained?
A2: Maintenance is minimal compared to oil-filled transformers. Routine inspections of connections, cooling airflow, and temperature monitoring are usually sufficient. There's no need for oil checks or replacement, reducing downtime and operational costs.

Q3: Can Dry Type Transformers operate in high-temperature environments?
A3: Yes, Dry Type Transformers are designed with insulation classes F and H, allowing operation in temperatures up to 155°C or 180°C. Forced-air cooling options further enhance performance in harsh environments.

How to Choose the Right Dry Type Transformer for Your Needs?

When selecting a Dry Type Transformer, consider the following factors:

• Load capacity: Ensure the transformer can handle the peak load without overheating.

• Voltage requirements: Match the primary and secondary voltage ratings with your electrical network.

• Cooling method: Decide between natural or forced-air cooling based on installation space and load conditions.

• Environmental conditions: Evaluate temperature, humidity, and potential exposure to dust or corrosive substances.

Choosing the correct transformer ensures long-term efficiency, safety, and cost-effectiveness.

Conclusion

Dry Type Transformers are a modern, safe, and efficient solution for various applications, from industrial plants to commercial buildings. With minimal maintenance, high energy efficiency, and environmentally friendly design, they offer significant advantages over traditional oil-filled transformers. For reliable performance and professional guidance on selecting the right Dry Type Transformer for your project, contact CEHO POWER TECHNOLOGY GROUP CO., LTD. today.
