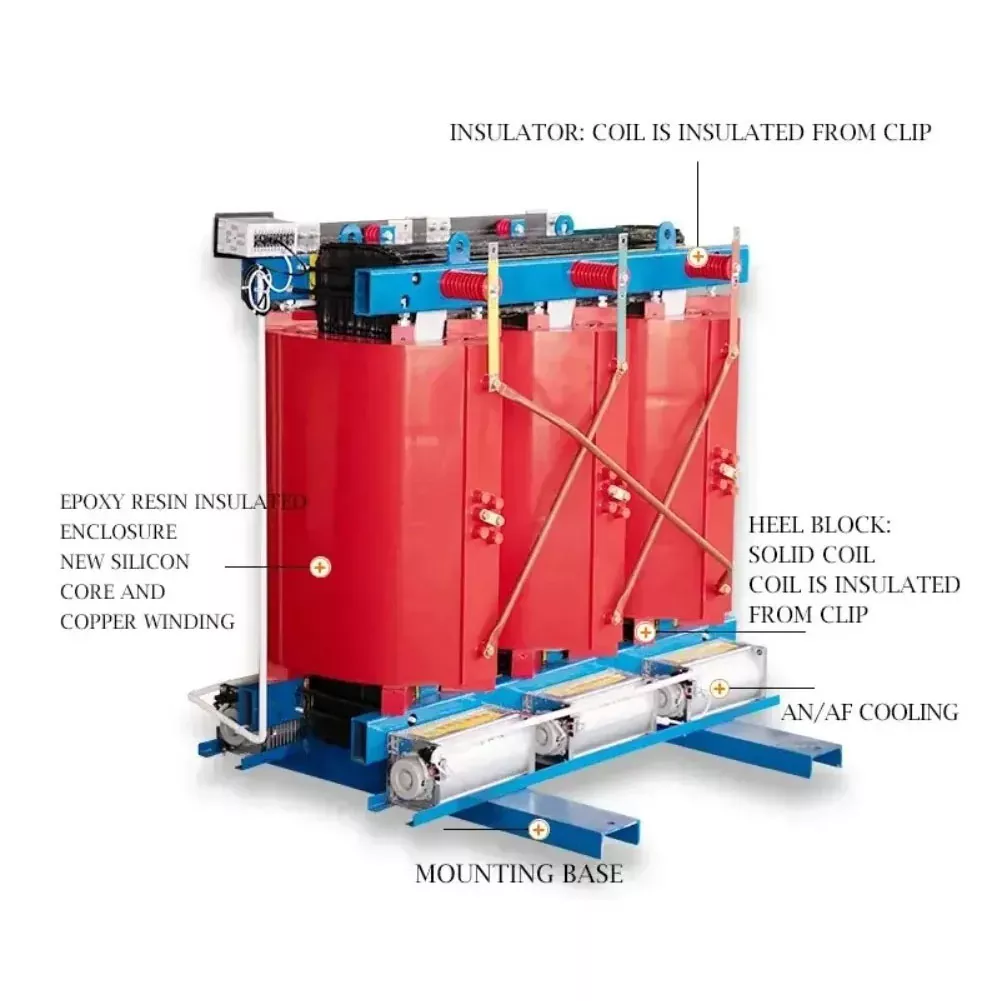

Epoxy Resin Cast Dry Type Distribution Transformer

This Epoxy Resin Cast Dry Type Distribution Transformer is safe, pollution-free, and flame-retardant. It can be directly installed at the load center and offers advantages such as maintenance-free operation, easy installation, low overall operating costs, low losses, and excellent moisture resistance. Ceho transformer can operate normally at 100% humidity and can be put into use without pre-drying when idle. It features low partial discharge, low noise, and strong heat dissipation, and can withstand 120% of its rated load under forced air cooling conditions.

Technical Parameters

Design and Manufacturing Process

Based on over 320 years of experience in transformer design, manufacturing, and testing, CEHO has developed an advanced 3D+parametric design software capable of automated design, cost optimization, and simulation.

Fully considering national and industry standards, we ensure superior product design.

The high-voltage winding conductors are made of high-quality conductors and reinforced with chopped glass fiber felt. An advanced Heydrich vacuum casting system is used for casting under vacuum conditions, effectively suppressing partial discharge (PDF) with a PDF rate ≤5pc.

The low-voltage winding uses high-quality foil conductors and is wound on an automatic foil winding machine. This machine employs a patented hydraulic energy-saving tension crimping device with a detection accuracy of ±0.5mm and advanced argon arc welding technology, playing a crucial role in ensuring coil winding quality.

The core of the Epoxy Resin Cast Dry Type Distribution Transformer transformer uses high-quality, high-permeability oriented silicon steel sheets, treated with a 45° full-bevel grinding process, and coated with a special moisture-proof and rust-proof coating, effectively reducing no-load current and noise levels.
